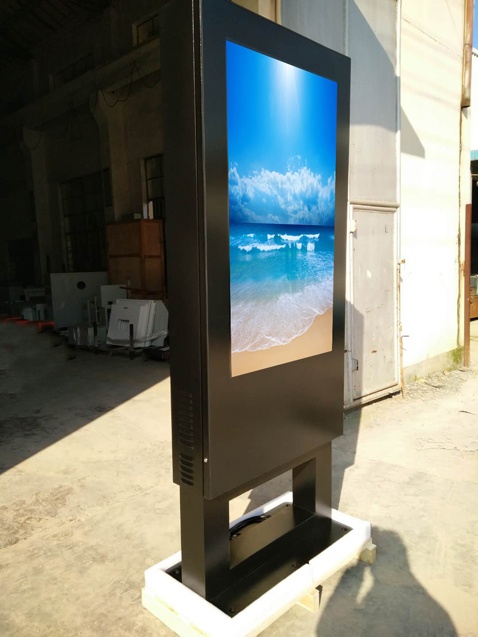

XT55OEVLD3396 model is a kind of outdoor stainless kiosk solution.It was built in auto brightness control, thermoelectric air conditioner and industrial fans.The brightness is up to 4000 nits. The vandal-resistant anti-reflective glass 6mm is for protecting 55" LCD screen.
Full Outdoor Metal Housing
|
The housing offers waterproof and dustproof functions with |
![]() |
![]() |
Remote management allows the user to control and adjust |
Built in Thermoelectric Air Conditioner
|
This AC is environment-friendly one. Low noise,no freon |
![]() |
Auto Brightness Control
![]() |
Different external environment conditions require different |
Support 24/7 Operation
|
The long-life LCD panel has high reliability and stability to |
![]() |
Energy-saving with LED backlight
![]() |
The LCD panel with LED back light has lower power |
| Model | XT55OEVLD3396 |
| Screen Size | 55 inch |
| Resolution | 1080 x 1920 |
| Product Size(mm) | 919.4(h)x 2263 (v)x 220(d) |
| Display Size (mm) |
682(h) x 1211(v) |
| Brightness | 4000 cd /m2 |
| Colors | 8 bit,16.7 M |
| Contrast Ratio | 2000:1 |
| Viewing Angle | 178°/178° |
| Input Power Voltage | AC 100~240 V (50 Hz~60 Hz) |
| Working Temp. | -40°C ~ +55°C |
| Interface Type | VGA/HDMI/ DVI -D IN,RS 232/Audio/BNC IN/OUT |
| Response Time | 8 ms |
| Life Time | 50000 |
| Accessories | Remote control, Power Cord, CD,HDMI Cord,Keys |
| Built-in TEC | Power Consumption: 580 W, Voltage: 48 V(DC), Current: 9.2 A |
| Power Consumption |
1000 W Max.(Including AC&Fans) |
| Packing Size (Plywood Box) |
1015 (l) x 545(w)x 2465(h)mm |
| Gross Weight | Approx 200 kg |
