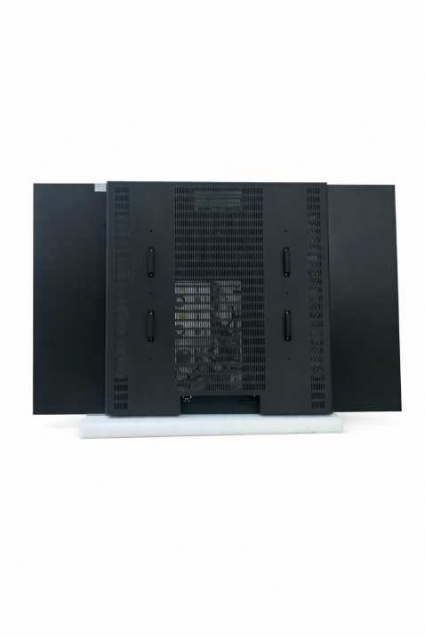

Model No.:XT86IEHWM9706
Built in high temperature resistant LCD panel with 2500nits.The use of mute fans reduces noise generation.Its thickness is 63.2mm only and bezel size is 14mm.
Silent & Fanless
|
Fanless thermal design operates quietly while efficiently
managing heat. Minimal moving parts reduce dust intake
and extend device lifespan. |

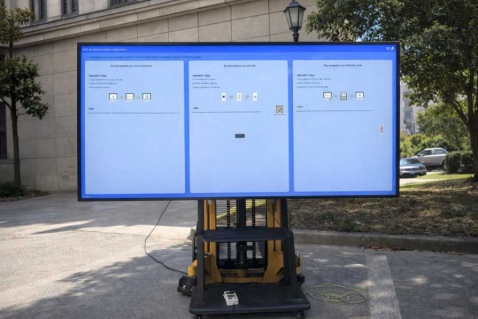

Sunlight Readable
|
High-brightness LED backlight ensures clear visibility
|
![]() |
Time ON/Off
![]() |
The auto power ON/OFF setting allows to make display
schedules every day and extends the unit lifetime.
|
Support 24/7 Operation
The long-life LCD panel has high reliability and stability to
ensure the system runnin continously in the whole year.

Extended Lifespan
![]() |
Low-stress LED operation and aluminum heat-dissipating
|
| Model | XT86IEHWM9706 |
| Screen Size | 86”(110°C /230°F) |
| Resolution | 3840x2160 |
| Product Size(mm) | 1924(h)x1094.7 (v)x 90(d) |
| Display Size (mm) |
1895.04(h) x1065.96(v) |
| Brightness | 2500cd/m2 |
| Colors | 16.7M |
| Contrast | 1200:1 |
| Viewing Angle |
±178° |
| Input Power Voltage | AC100~240V(50Hz~60Hz) |
| Working Temp. |
0°C ~+ 50°C |
| Interface Type | VGA/HDMI/RJ45/USB2.0 |
| Response Time | 8ms |
| Life Time | 50000h |
| Net weight | 50kg |
