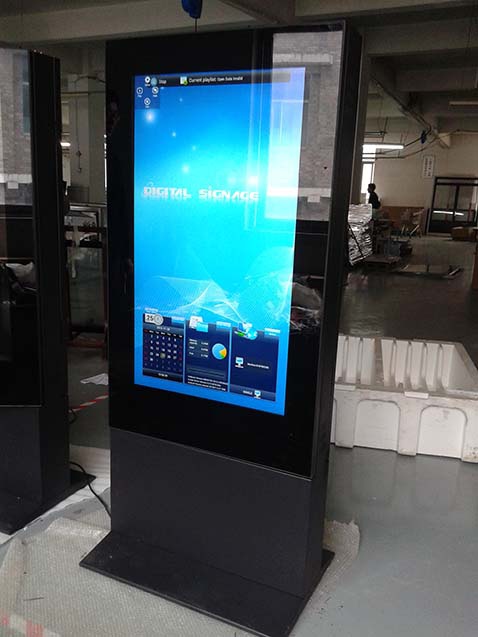

The XT46IELVD model is double sided kiosk with Android system.One of panel can be opened for service easily. Hijra Dates system was built in(Option).
Full High Definition
|
This unit offers 1080p resolution and wide view angles let
|
![]() |
![]() |
|

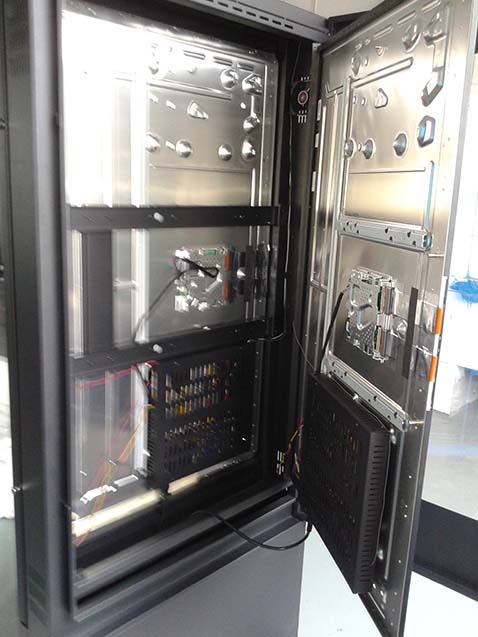

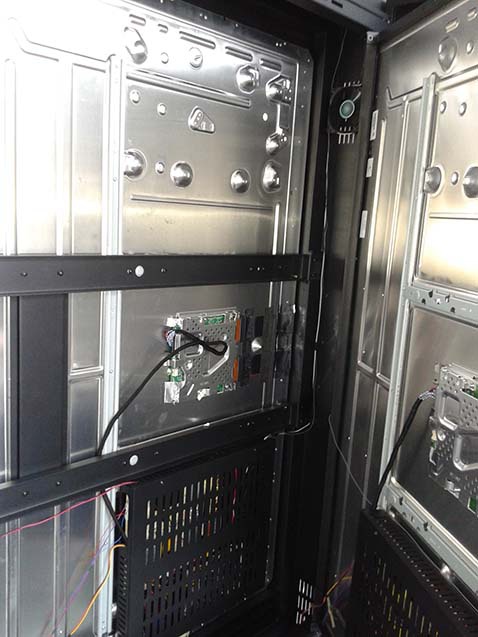

Easy Service
|

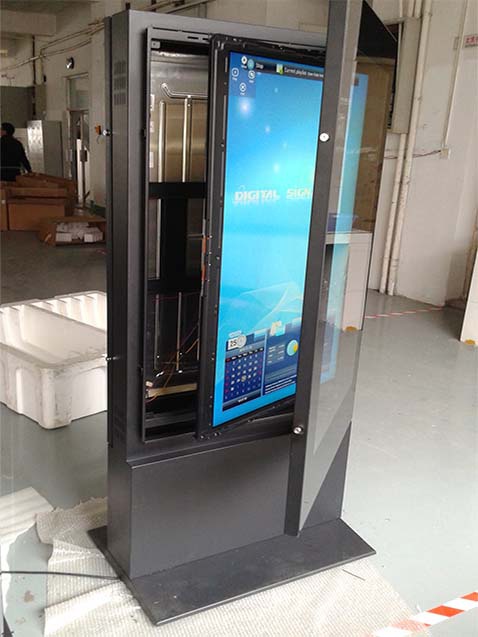

The design for one of panel is opened separately so
|
![]() |
Time ON/Off
![]() |
The auto power ON/OFF setting allows to make display
schedules every day and extends the unit抯 lifetime.
|
Support 24/7 Operation
The long-life LCD panel has high reliability and stability to
ensure the system runnin continously in the whole year.

Energy-saving with LED backlight
![]() |
The LCD panel with LED back light has lower power |
| Model | XT46IEVLD |
| Screen Size | 46 inch |
| Resolution | 1920x1080 |
| Product Size(mm) | 784(h)x1800.16(v)x176(d) |
| Display Size (mm) | 572.67(h)x1018.08(v) |
| Brightness | 460cd/m2 max. |
| Colors | 16.7M |
| Contrast | 4000:1 |
| Viewing Angle | 178°/178° |
| Input Power Voltage | AC100~240V(50Hz~60Hz) |
| Working Temp. | 0°C ~ 45°C |
| Interface Type | VGA/HDMI/DVI-D IN,RS232/Audio/BNC IN/OUT |
| Response Time | 6.5ms |
| Life Time | 30000hours |
| Accessories | Remote control, Power Cord, CD,HDMI Cord,Keys |
| Built in mini PC(Optional) | CPU: INTEL i33227U +HM76 Express Memory: 4GB DDR3 Hard disk:500G IC: HD Graphics 4000 Wireless Net: 802.11b/g/1000M I/O Ports: 4xUSB 2.0+1xUSB3.0,1xVGA,1x HDMI; 1x RJ45,Audio, Video,1xSD Working environment: Temperature:0°C~40°C Humidity:10% ~80% Unit size: 192*155*26mm |
| Power Consumption | 190W Max.(Including mini PC) |
| Packing Size (Plywood Box) | 1880(h)x900(v)x600(d)mm |
| Gross Weight | Approx280kg |
Shanghai Cigema Electronics Co.,Ltd
